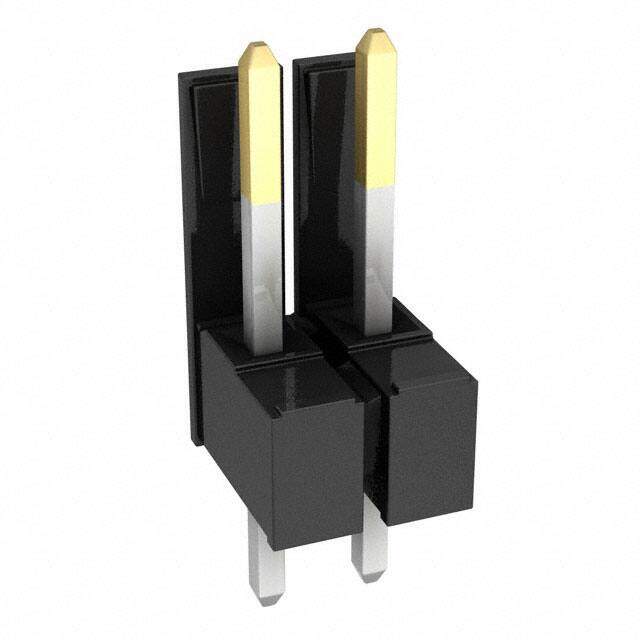

0022283021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr Pol Vert Vert 02 Ckt 15 SGold
PDF
/
Inventory: 3649
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Overall Contact Length 0.540 13.72mm
UL Flammability Code 94V-0
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.120 3.05mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.337 8.56mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 2
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series KK 42225
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material BRASS
Supply Chain
Factory Lead Time 10 Weeks
