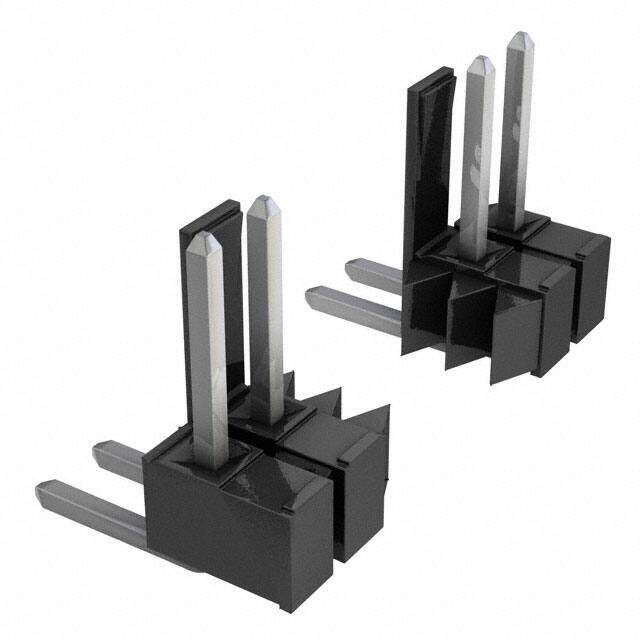

0022282287
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr Pol BWR R BWR RtAn 28 Ckt Tin
PDF
/
Inventory: 5954
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Packaging Bulk
Series KK 42226
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Additional Feature POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Right Angle
Terminal Pitch 2.54mm
Insulation Height 0.284 7.21mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 1 Wall
Number of Contacts 28
Contact Length - Mating 0.295 7.49mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
