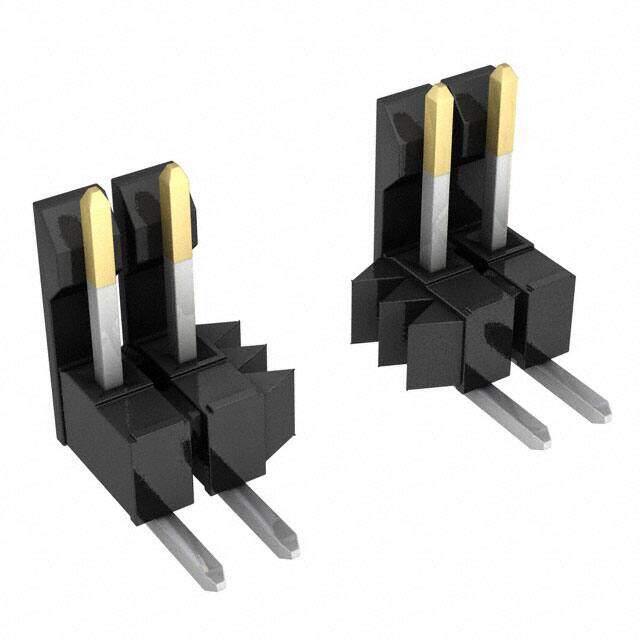

0022281131
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr FrLk RtAn 13 Ckt 15 SGold
PDF
/
Inventory: 2378
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Nylon
Technical
Packaging Bulk
Series KK 42228
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 13
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Black
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 2.54mm
Orientation Right Angle
Depth 11.23mm
Insulation Height 0.284 7.21mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 4A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 1 Wall
Number of Contacts 13
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
Housing Color Black
Contact Resistance 20mOhm
Number of Circuits 13
Max Voltage Rating (AC) 250V
Dimensions
Length 33.02mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
