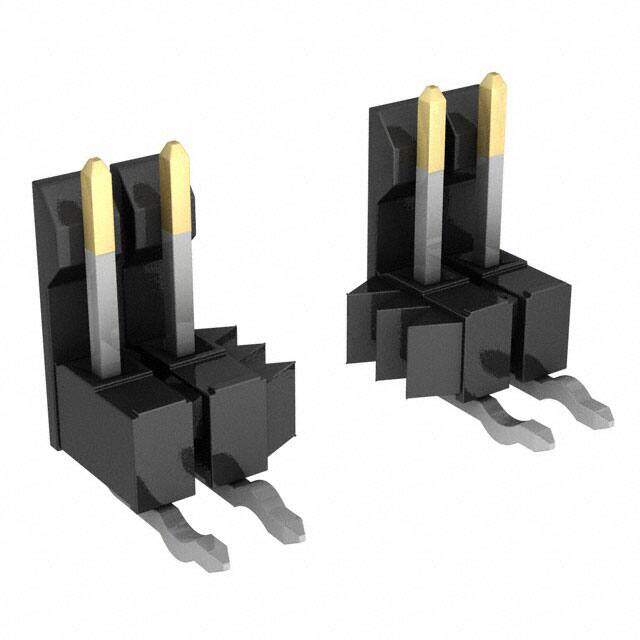

0022281084
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr FrLk RtAn 08 Ckt 15 SGold
PDF
/
Inventory: 944
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Number of Circuits 8
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Number of Contacts 8
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.135 3.43mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.284 7.21mm
Orientation Right Angle
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Color Black
Number of Positions 8
Connector Type Header, Breakaway
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 42228
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
