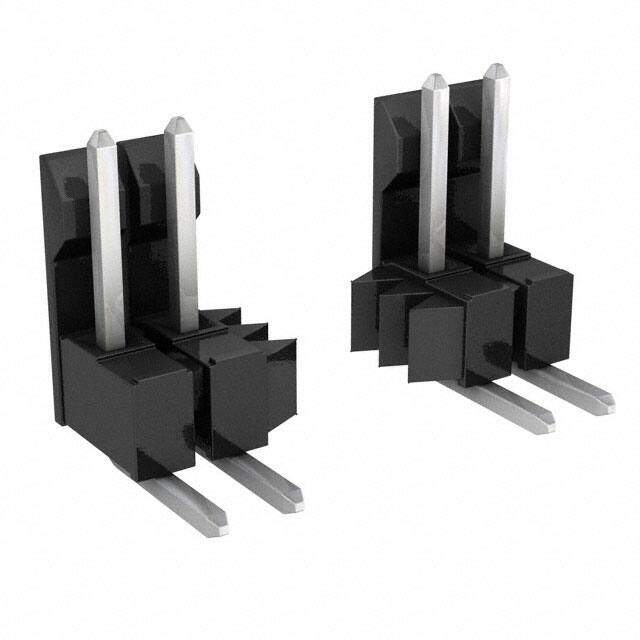

0022281060

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description KK 100 HDR FRLK RTAN 6POS TIN
PDF
/
Inventory: 984
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.120 3.05mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.284 7.21mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 6
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 42228
Packaging Bulk

Physical

Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle

Supply Chain

Factory Lead Time 9 Weeks
