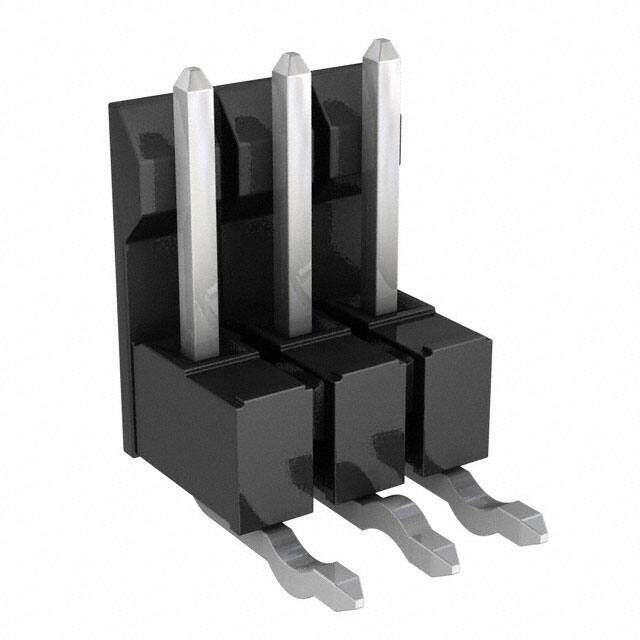

0022281039 image
Favorite
0022281039 image
Favorite

0022281039

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description KK 100 HDR FRLK RTAN 3POS TIN
PDF
/
Inventory: 8561
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

Contact Length - Mating 0.295 7.49mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.135 3.43mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.284 7.21mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 3
Connector Type Header, Breakaway
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series KK 42228
Packaging Bulk

Physical

Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle

Supply Chain

Factory Lead Time 9 Weeks
