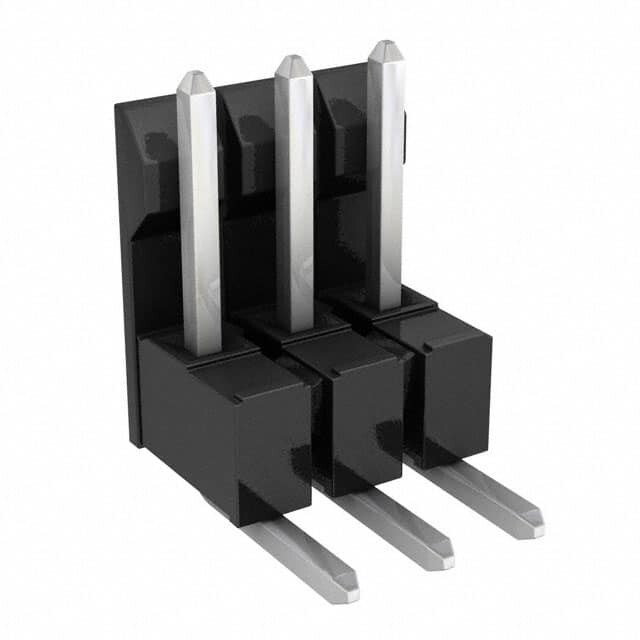

0022281036
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 3 POS 2.54mm Solder RA Thru-Hole KK? Bag
PDF
/
Inventory: 5090
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Glow Wire Compliant Non-compliant
Number of Circuits 3
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.120 3.05mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.284 7.21mm
Orientation Right Angle
Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 3
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 42228
Packaging Bulk
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Package / Case 100
Mounting Type Through Hole, Right Angle
Contact Plating Tin
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
