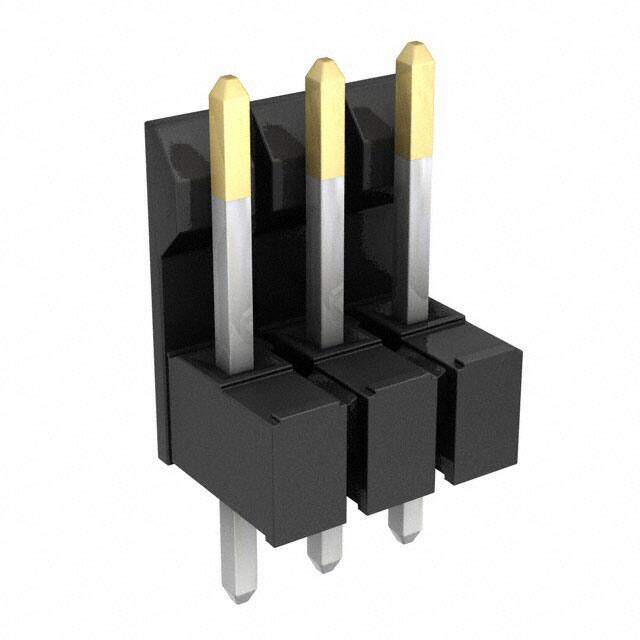

0022280031
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole KK? Bag
PDF
/
Inventory: 7245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material BRASS
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Technical
Packaging Bulk
Series KK 42227
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 3
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZATION
Fastening Type Friction Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 2.54mm
Insulation Height 0.337 8.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Shrouded - 1 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
UL Flammability Code 94V-0
Overall Contact Length 0.540 13.72mm
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
