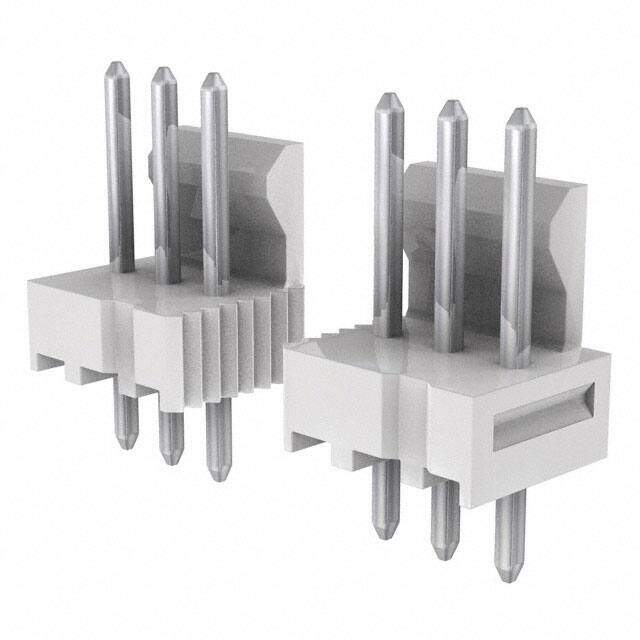

0022233120
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
KK 100 HDR FRLK VERT 12POS TIN
PDF
/
Inventory: 6097
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series KK 6373
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.322 8.18mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color White
Contact Length - Post 0.175 4.45mm
Shrouding Shrouded - 1 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.260 6.60mm
Overall Contact Length 0.500 12.70mm
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
