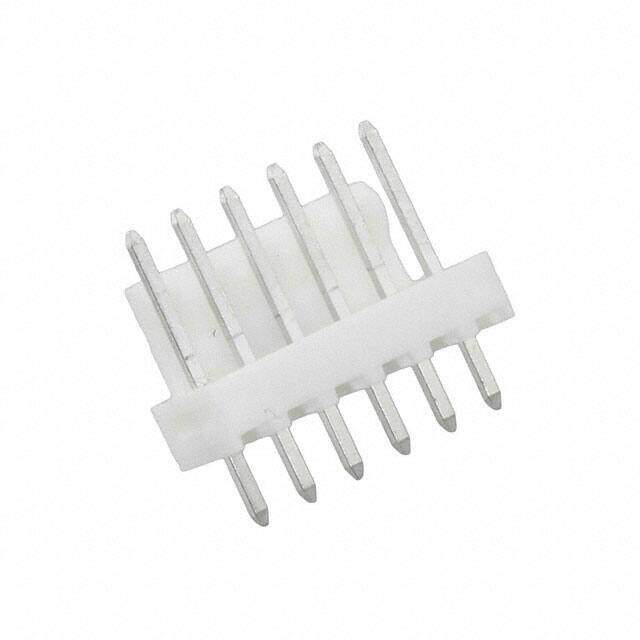

0022232061 image
Favorite
0022232061 image
Favorite

0022232061

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description KK? 254 Solid Header, Vertical, with Friction Lock, 6 Circuits, Tin (Sn) Plating
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.3344
≥100 USD $0.260216
≥500 USD $0.204433
≥1000 USD $0.179652
≥3000 USD $0.167262
Inventory: 14503
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon

Technical

Packaging Bulk
Series KK 6373
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Additional Feature POLARIZED
Fastening Type Friction Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 2.54mm
Insulation Height 0.322 8.18mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color White
Contact Length - Post 0.140 3.56mm
Shrouding Shrouded - 1 Wall
Contact Length - Mating 0.295 7.49mm
UL Flammability Code 94V-0
Overall Contact Length 0.560 14.22mm

Dimensions

Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
