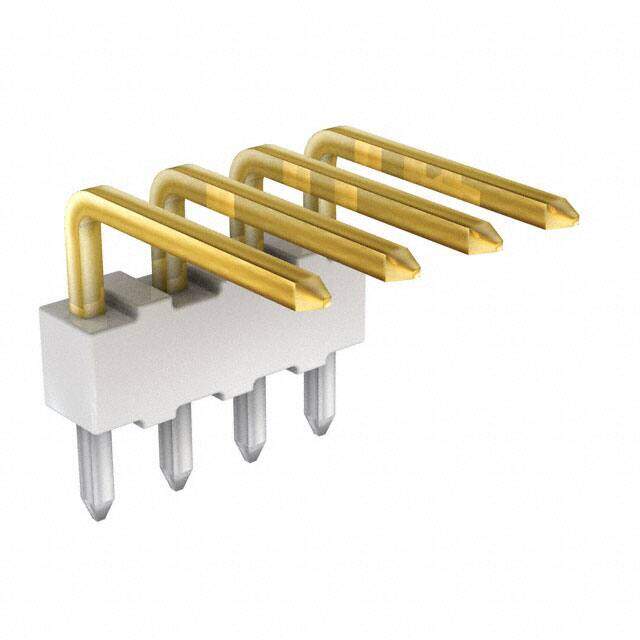

0022122041
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole KK? Bag
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.52448
≥100 USD $0.43736
≥500 USD $0.385
Inventory: 18717
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Technical
Contact Length - Mating 0.369 9.37mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.124 3.15mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.130 3.30mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 4094
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 11 Weeks
