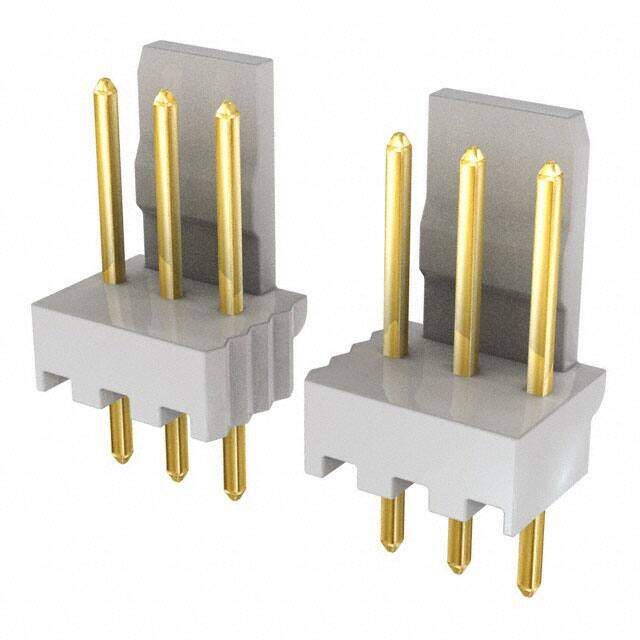

0022111131
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 13POS 2.5MM
PDF
/
Inventory: 2397
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series KK 5045
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 13
Number of Rows 1
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.461 11.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 1 Wall
Contact Length - Mating 0.295 7.49mm
Overall Contact Length 0.559 14.20mm
Dimensions
Contact Finish Thickness - Mating 13.8μin 0.35μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
