0022102104
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

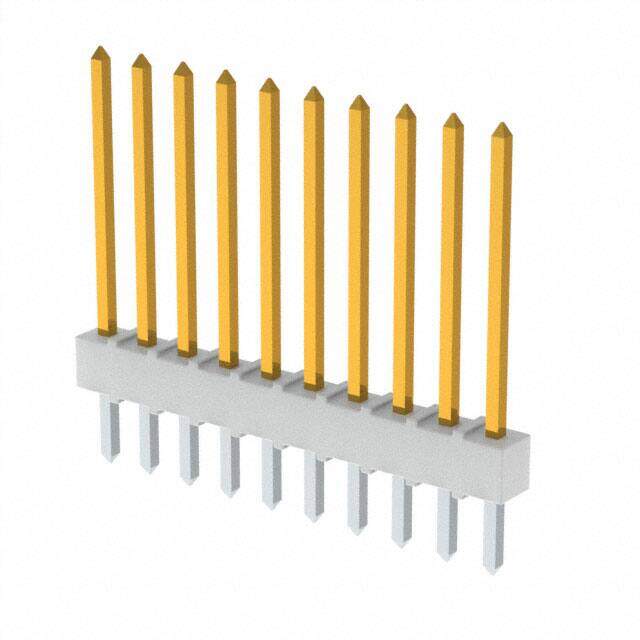

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole KK? Bulk
PDF
/
Inventory: 7909
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Technical
Overall Contact Length 0.840 21.34mm
Contact Length - Mating 0.560 14.22mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.150 3.81mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.130 3.30mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 4030
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
