0022102071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

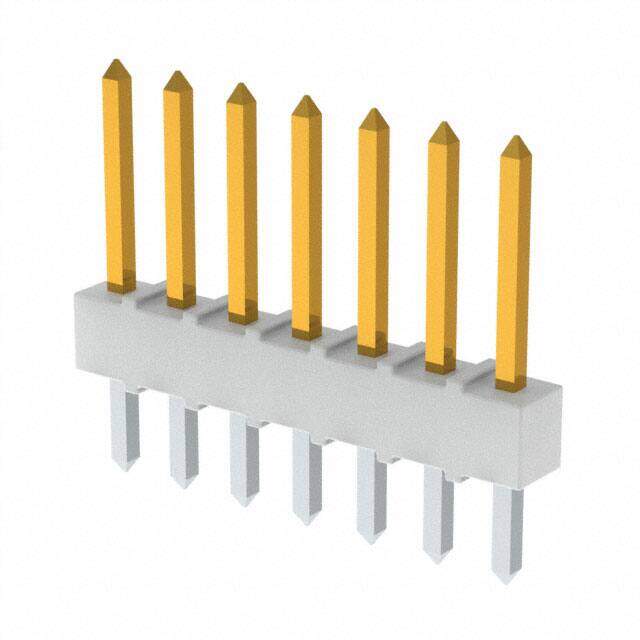

Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole KK? Bag
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.73304
≥100 USD $0.60544
≥500 USD $0.561
Inventory: 4585
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 20.0μin 0.51μm
Technical
Overall Contact Length 0.560 14.22mm
UL Flammability Code 94V-0
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.135 3.43mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.130 3.30mm
Terminal Pitch 2.54mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Additional Feature STACKED
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series KK 4030
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole
Contact Material BRASS
Supply Chain
Factory Lead Time 12 Weeks
