0022057088
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

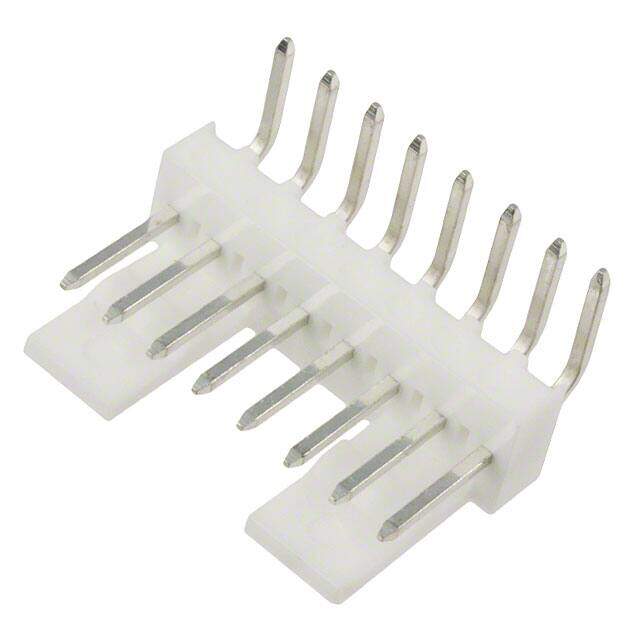

CONN HEADER R/A KK 8POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.27072
≥100 USD $1.049752
≥500 USD $0.773467
≥1000 USD $0.718221
Inventory: 35803
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 60.0μin 1.52μm
Contact Finish Thickness - Mating 60.0μin 1.52μm
Plating Thickness 200μin
Technical
Withdrawl Force-Min .556 N
Durability 25 Cycles
Rated Current (Signal) 4A
Contact Length - Mating 0.264 6.70mm
Number Of PCB Rows 1
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.150 3.81mm
Reliability COMMERCIAL
Reference Standard UL, CSA
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.228 5.80mm
Terminal Pitch 2.54mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 7395
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
