0022053031

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

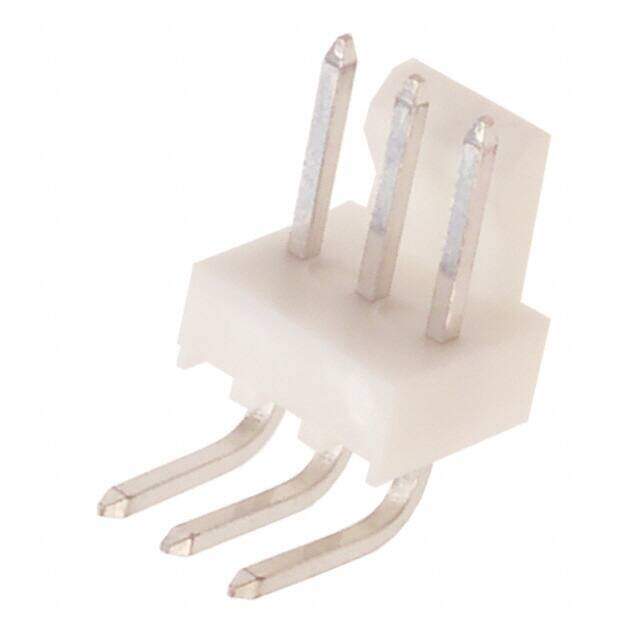

Description KK? 254 Solid Header, Right Angle, with Friction Lock, 3 Circuits, Tin (Sn) Plating
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.4312
≥1 USD $0.4312
≥10 USD $0.3608
≥100 USD $0.28072
≥500 USD $0.213884
≥1000 USD $0.193829
≥3000 USD $0.180462
Inventory: 7536
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm

Technical

UL Flammability Code 94V-0
Contact Length - Mating 0.264 6.70mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.141 3.58mm
Insulation Color White
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.256 6.50mm
Terminal Pitch 2.54mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Additional Feature POLARIZED
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series KK 7478
Packaging Bulk

Physical

Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 8 Weeks
