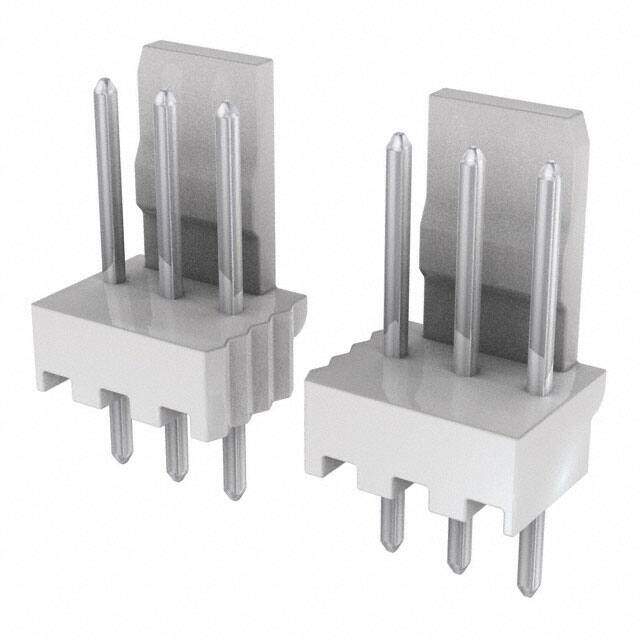

0022041071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 7 POS 2.5mm Solder ST Thru-Hole KK? Bag
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.80432
≥100 USD $0.664752
≥500 USD $0.616
Inventory: 3262
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Mounting Option 1 FRICTION RAMP
Mounting Option 2 LOCKING
Technical
Packaging Bulk
Series KK 5045
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 7
Number of Rows 1
HTS Code 8536.69.40.40
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Terminal Pitch 2.4892mm
Insulation Height 0.461 11.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.098 2.50mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 1 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.295 7.49mm
Operating Temperature (Min) -40°C
Rated Current (Signal) 3A
Overall Contact Length 0.559 14.20mm
Contact Resistance 20mOhm
Mating Contact Pitch 0.098 inch
Durability 30 Cycles
Dimensions
Plating Thickness 200μin
Contact Finish Thickness - Mating 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
