0022035025
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

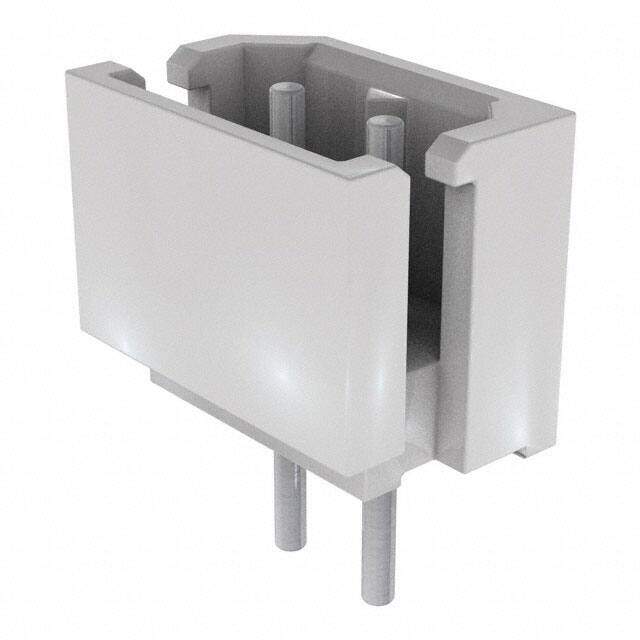

CONN HEADER VERT 2POS 2.5MM
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.17952
≥100 USD $0.129008
≥500 USD $0.100954
≥1000 USD $0.089734
≥3000 USD $0.081321
Inventory: 39549
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Overall Contact Length 0.350 8.89mm
UL Flammability Code 94V-0
Contact Length - Mating 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Pitch - Mating 0.098 2.50mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.232 5.90mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Detent Lock
Additional Feature POLARIZED, SHROUDED
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini-SPOX 5267
Packaging Bulk
Physical
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
