0022032061
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

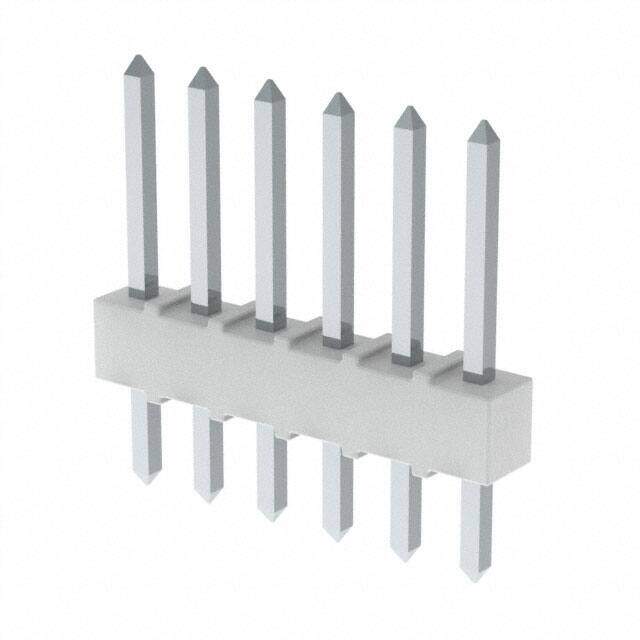

Connector Unshrouded Header 6 Position 2.54mm Solder Straight Thru-Hole Bulk
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.24904
≥100 USD $0.193776
≥500 USD $0.162466
Inventory: 33085
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material BRASS
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Packaging Bulk
Series KK 4030
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Rows 1
Additional Feature STACKED
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Terminal Pitch 2.54mm
Insulation Height 0.130 3.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color White
Contact Length - Post 0.135 3.43mm
Shrouding Unshrouded
Contact Length - Mating 0.295 7.49mm
UL Flammability Code 94V-0
Overall Contact Length 0.560 14.22mm
Dimensions
Contact Finish Thickness - Mating 60.0μin 1.52μm
Contact Finish Thickness - Post 60.0μin 1.52μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
