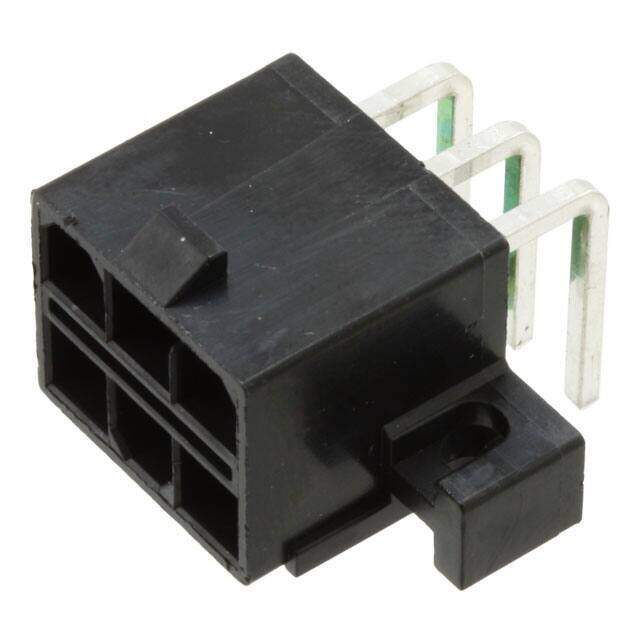

0015978062
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 6POS 4.2MM
PDF
/
Inventory: 3246
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Empty Shell NO
UL Flammability Code 94V-0
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.157 4.00mm
Row Spacing - Mating 0.217 (5.51mm)
Insulation Color Black
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.461 11.70mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Additional Feature POLARIZED
Number of Rows 2
Applications Automotive, Industrial, Telecommunications
Number of Positions 6
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
JESD-609 Code e3
Series Mini-Fit TPA 30070
Packaging Tray
Physical
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass
