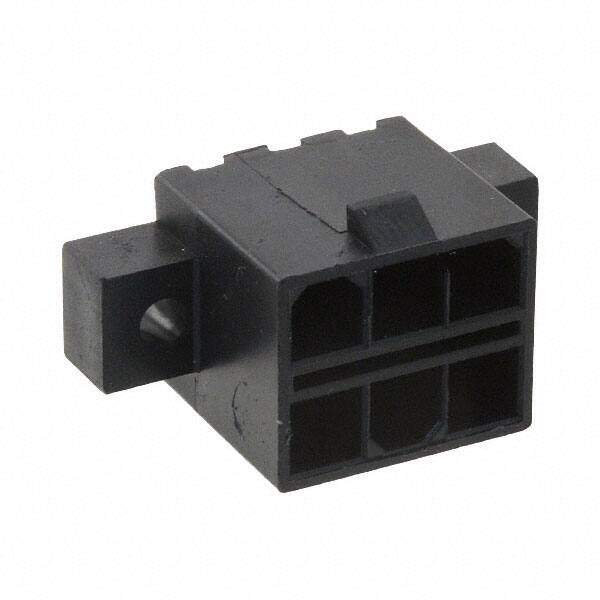

0015977062
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 6POS 4.2MM STR TIN
PDF
/
Inventory: 2210
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 35.0μin 0.90μm
Contact Finish Thickness - Mating 35.4μin 0.90μm
Length 23.8mm
Height 13.05mm
Technical
Number of Ports 1
Max Voltage Rating (AC) 600V
Contact Resistance 10mOhm
Empty Shell NO
Housing Color Black
UL Flammability Code 94V-0
Number of Contacts 6
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.217 (5.51mm)
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Depth 12.7mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Additional Feature POLARIZED
Voltage - Rated 600V
Gender Male
Number of Rows 2
Applications Automotive, Industrial, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mounting Flange
JESD-609 Code e3
Series Mini-Fit TPA 30069
Packaging Bulk
Physical
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass Alloy
Supply Chain
Factory Lead Time 9 Weeks
