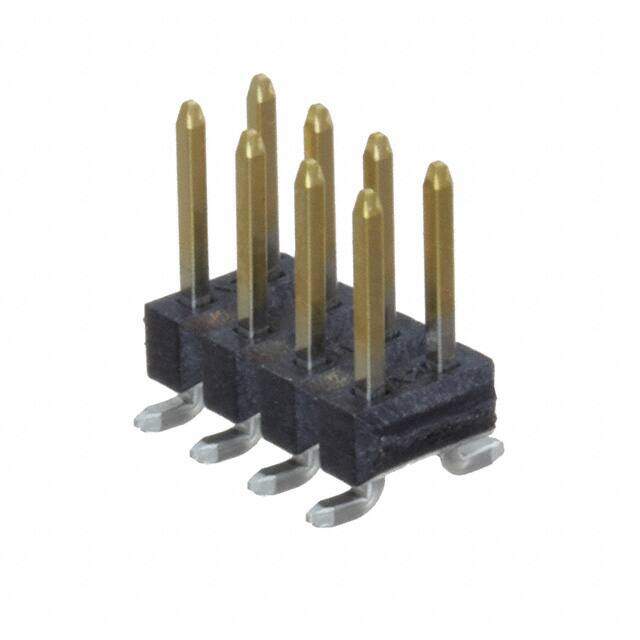

0015913080 image
Favorite
0015913080 image
Favorite

0015913080

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD C-Grid? Tube
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.03752
≥100 USD $0.864424
≥500 USD $0.626727
≥1000 USD $0.605114
≥3000 USD $0.57486
Inventory: 3896
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled

Technical

Packaging Tube
Series C-Grid 71308
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 8
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Additional Feature STACKABLE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 8
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
UL Flammability Code 94V-0

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 74.8μin 1.90μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
