0015913033
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

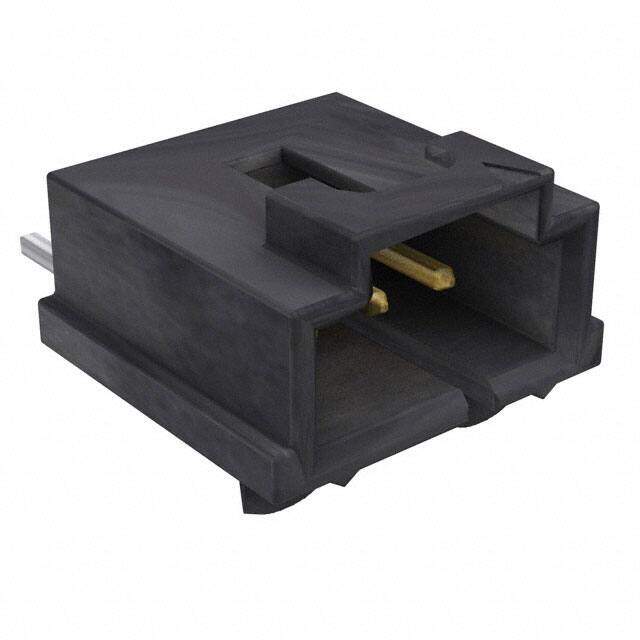

CONN HEADER SMD R/A 3POS 2.54MM
PDF
/
Buying Options
Total Price: USD $3.12
Unit Price: USD $3.1152
≥1 USD $3.1152
≥10 USD $2.7412
≥100 USD $2.18049
≥500 USD $1.80671
≥1000 USD $1.619807
Inventory: 1392
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyester, Glass Filled
Technical
Packaging Tube
Series SL 70634
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 3
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Additional Feature SL, POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 3
Terminal Pitch 2.54mm
Insulation Height 0.215 5.45mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
