0015912040
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

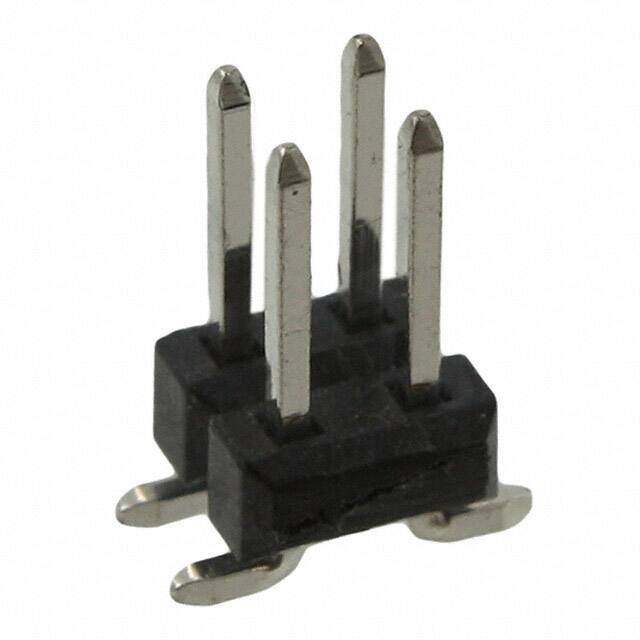

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tube
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.34936
≥100 USD $0.271568
≥500 USD $0.2277
Inventory: 1159
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Packaging Bulk
Series C-Grid 71308
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Breakaway
Number of Positions 4
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 4
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Unshrouded
Contact Length - Mating 0.240 6.10mm
Dimensions
Contact Finish Thickness - Mating 150.0μin 3.81μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
