0015801241
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

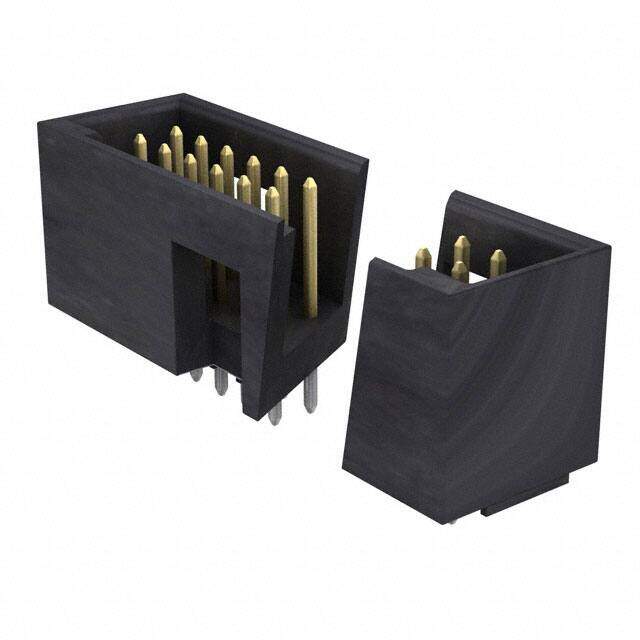

Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole C-Grid? Tube
PDF
/
Inventory: 2302
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 74.8μin 1.90μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Overall Contact Length 0.570 14.48mm
UL Flammability Code 94V-0
Contact Length - Mating 0.315 8.00mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.475 12.07mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Detent Lock
Number of Rows 2
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Positions 24
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid 70567
Packaging Tube
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
