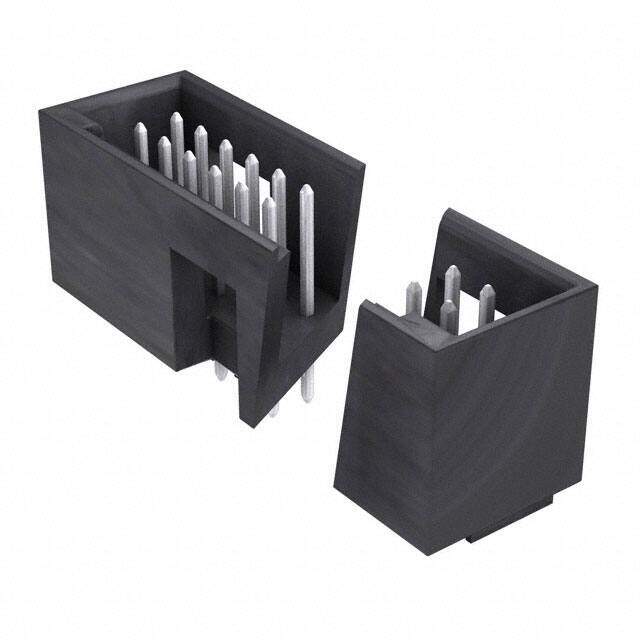

0015800321
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings CGrid VT Shrd Hdr Opt A Tin 32Ckt
PDF
/
Inventory: 2950
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 150.0μin 3.81μm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Technical
Number of Circuits 30
Overall Contact Length 0.570 14.48mm
UL Flammability Code 94V-0
Contact Length - Mating 0.315 8.00mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2.5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.475 12.07mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Detent Lock
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Positions 32
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series C-Grid 70567
Packaging Tube
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
