0015477634
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

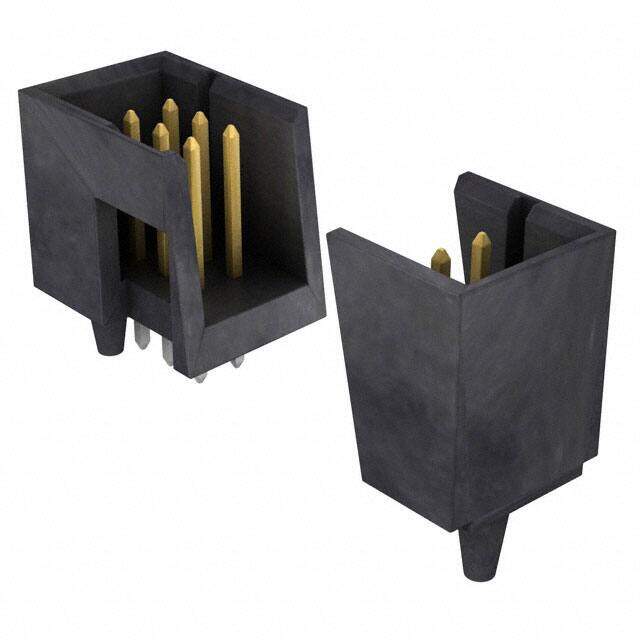

Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole C-Grid? Tube
PDF
/
Inventory: 6751
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Brass
Housing Material Polymer
Technical
Packaging Tube
Series C-Grid 70568
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 34
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 2.54mm
Orientation Vertical
Insulation Height 0.475 12.07mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Number of Contacts 34
Contact Finish - Post Tin
Contact Length - Mating 0.315 8.00mm
Contact Gender Male
Lead Length 3.3mm
Overall Contact Length 0.570 14.48mm
ELV Compliant
Number of Circuits 34
Halogen Free Low Halogen
Mating Post Length 8mm
Glow Wire Compliant Non-compliant
Dimensions
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 74.8μin 1.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
