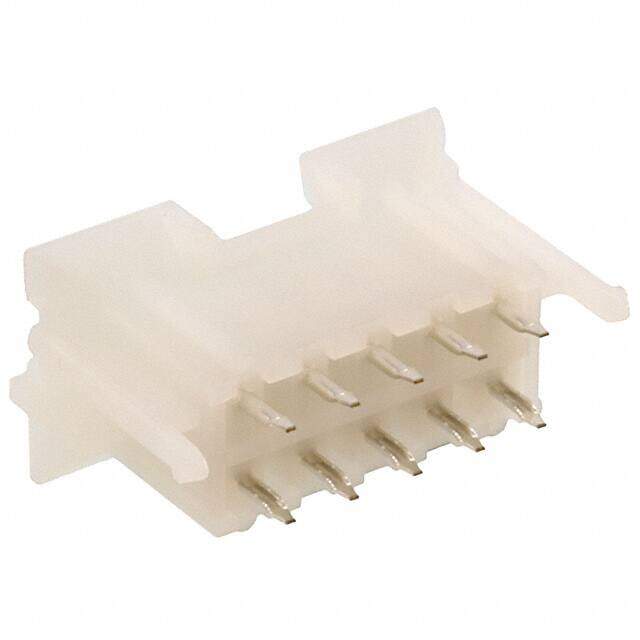

0015246101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 10POS 4.2MM
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.5224
≥1 USD $1.5224
≥10 USD $1.2936
≥100 USD $1.068874
≥500 USD $0.99044
Inventory: 17943
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Brass
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Packaging Tray
Series Mini-Fit BMI 42440
JESD-609 Code e3
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 10
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Rows 2
Additional Feature POLARIZED
HTS Code 8536.69.40.30
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.555 14.10mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
