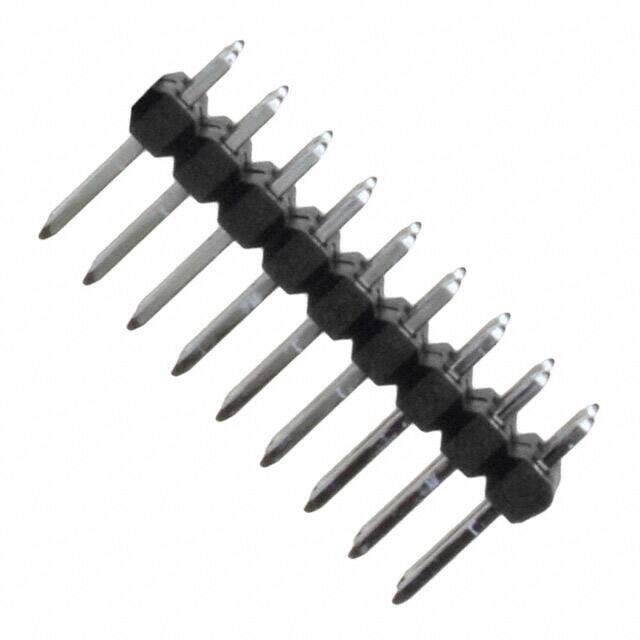

0010897181
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR DUAL 18POS .100 SRT TIN
PDF
/
Inventory: 4326
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Voltage - Rated 250V
Fastening Type Push-Pull
Voltage - Rated DC 250V
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 2.54mm
Orientation Vertical
Insulation Height 0.090 2.29mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.107 2.71mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 18
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Contact Gender Male
Housing Color Black
Overall Contact Length 0.437 11.10mm
Contact Resistance 15mOhm
ELV Compliant
Number of Circuits 18
Halogen Free Low Halogen
Glow Wire Compliant Non-compliant
Packaging Bulk
Series C-Grid 70280
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 18
Dimensions
Contact Finish Thickness - Mating 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Thermoplastic
