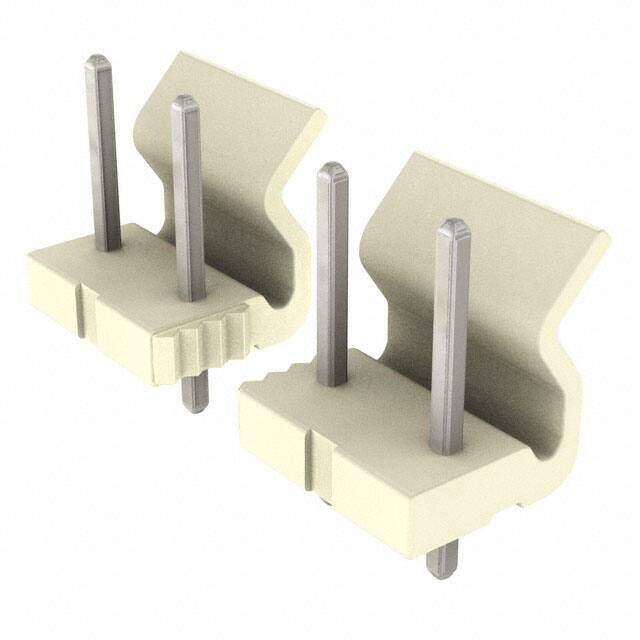

0010634067 image
Favorite
0010634067 image
Favorite

0010634067

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 6POS 7.92MM
PDF
/
Inventory: 8589
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Contact Plating Copper, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6

Technical

Packaging Bulk
Series KK 5096
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 1
Gender Male
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 7.9248mm
Insulation Height 0.482 12.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.312 7.92mm
Contact Length - Post 0.142 3.60mm
Shrouding Shrouded - 1 Wall
Number of Contacts 6
Contact Finish - Post Tin
Contact Length - Mating 0.419 10.65mm
Overall Contact Length 0.687 17.45mm

Compliance

Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
