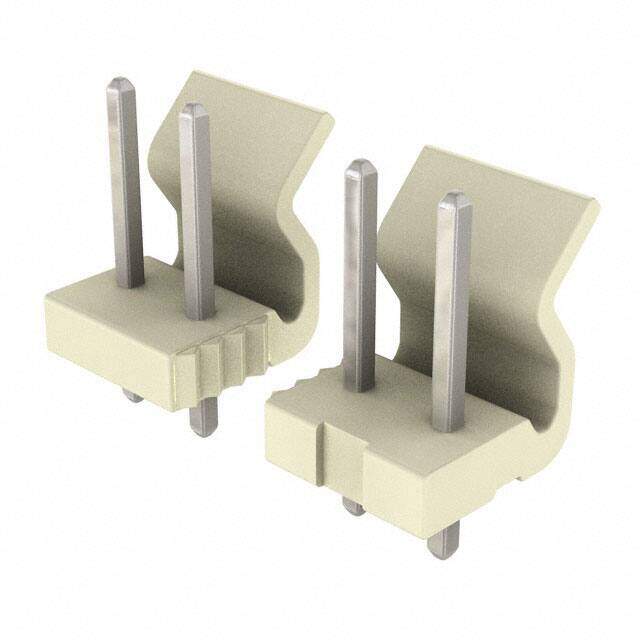

0010321081
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 8 POS 5.08mm Solder ST Thru-Hole SPOX? Bag
PDF
/
Inventory: 8384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Technical
Overall Contact Length 0.687 17.45mm
UL Flammability Code 94V-2
Contact Length - Mating 0.419 10.65mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.142 3.60mm
Insulation Color Natural
Pitch - Mating 0.200 5.08mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.508 12.90mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Friction Lock
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series SPOX 5281
Packaging Bulk
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
