0010181150
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

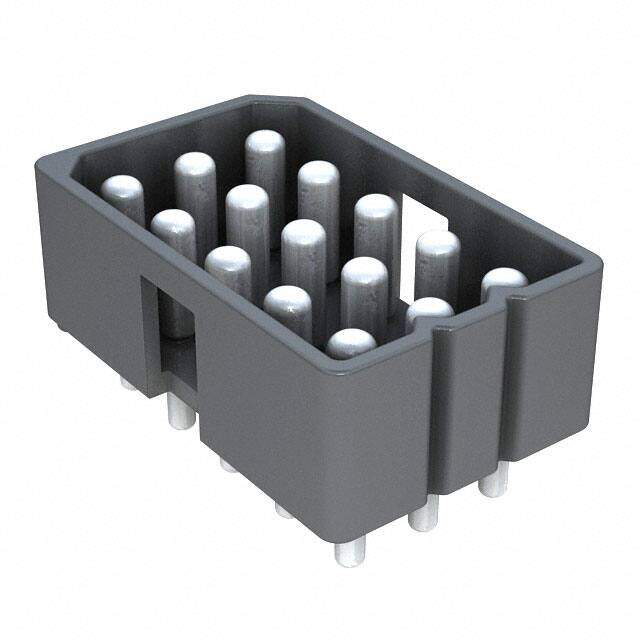

Conn Shrouded Header HDR 15 POS 5.03mm Solder ST Thru-Hole Bag
PDF
/
Buying Options
Total Price: USD $6.13
Unit Price: USD $6.13373
≥1 USD $6.13373
≥10 USD $5.78654
≥100 USD $5.459
≥500 USD $5.15
≥1000 USD $4.85849
Inventory: 1591
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Cartridge Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyester
Technical
Packaging Bulk
Series 3099
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 15
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications General Purpose, Telecommunications
Number of Rows 3
Voltage - Rated 250V
Fastening Type Latch Lock
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Vertical
Insulation Height 0.421 10.70mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code unknown
Current Rating 5A
Pitch - Mating 0.198 5.03mm
Insulation Color Black
Row Spacing - Mating 0.198 (5.03mm)
Contact Length - Post 0.170 4.32mm
Shrouding Shrouded - 4 Wall
Contact Gender Male
UL Flammability Code 94V-2
Empty Shell NO
Glow Wire Compliant Non-compliant
Dimensions
Contact Finish Thickness - Mating 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-2
