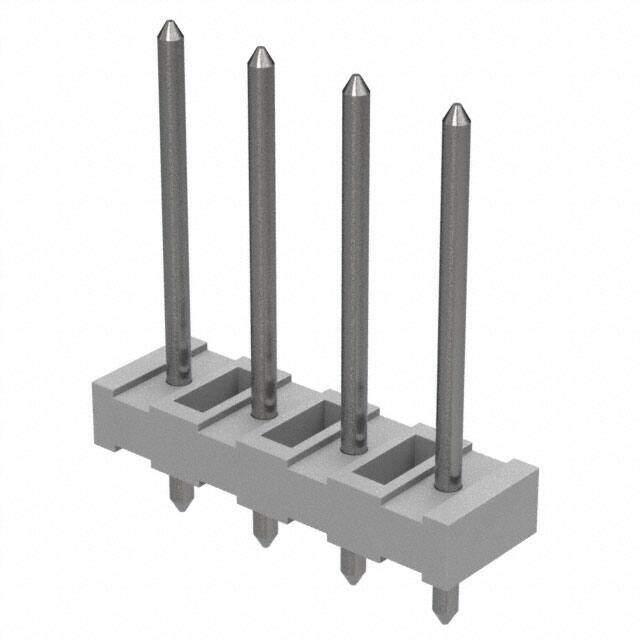

0010081042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 4POS 5.08MM
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.31856
≥100 USD $0.247456
≥500 USD $0.207478
Inventory: 10301
Minimum: 1
-
+
Technical Details
Physical
Insulation Material Polyamide (PA), Nylon
Contact Shape Circular
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Overall Contact Length 0.937 23.80mm
Contact Length - Mating 0.657 16.69mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.155 3.94mm
Insulation Color Natural
Pitch - Mating 0.200 5.08mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.125 3.18mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 1
Applications General Purpose, Industrial, Telecommunications
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series KK 3003
Packaging Bulk
