0009752064
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

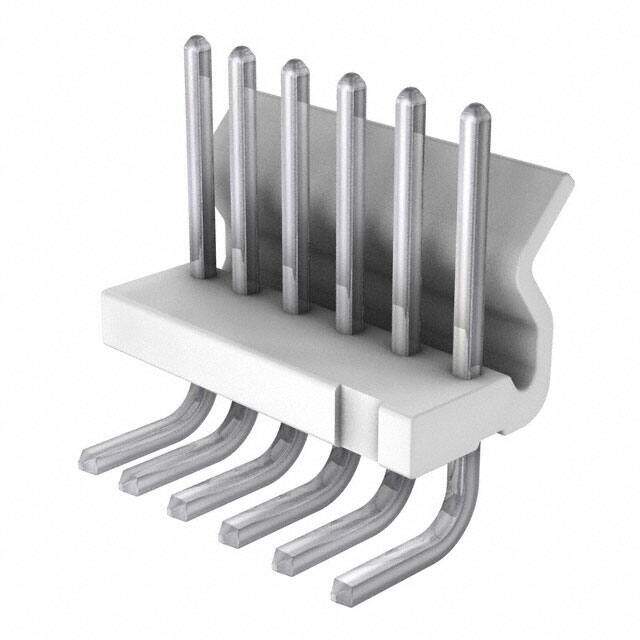

MOLEX 09-75-2064Wire-To-Board Connector, Right Angle, Through Hole, Header, 6 Contacts, 3.96 mm
PDF
/
Inventory: 7995
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-2
Dimensions
Length 23mm
Technical
Max Voltage Rating (AC) 250V
Number of Circuits 6
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Housing Color Natural
Contact Length - Mating 0.535 13.59mm
Contact Finish - Post Tin
Number of Contacts 6
Lead Pitch 3.96mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.142 3.60mm
Pitch - Mating 0.156 3.96mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.402 10.20mm
Depth 22.2mm
Orientation Right Angle
Pitch 3.9624mm
Contact Type Male Pin
Contact Finish - Mating Tin
Voltage - Rated DC 250V
Fastening Type Friction Lock
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series KK 5274
Packaging Bulk
Physical
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Brass
