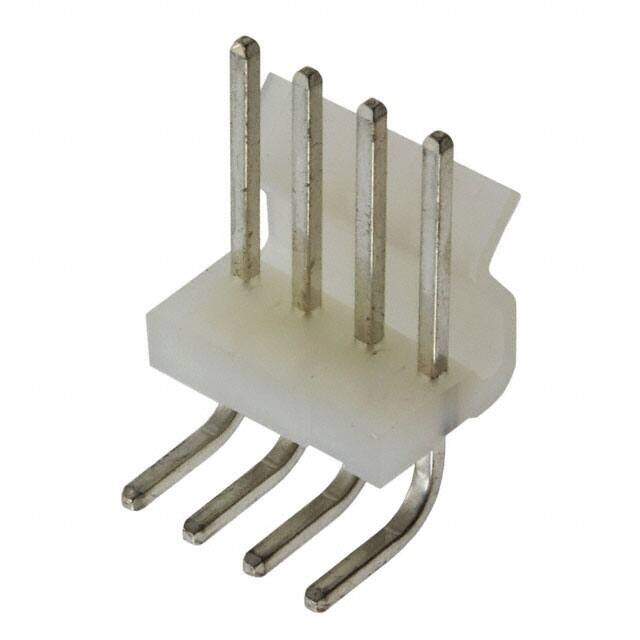

0009752044
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 4POS 3.96MM
PDF
/
Inventory: 3401
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Packaging Bulk
Series KK 5274
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows 1
Gender Male
Fastening Type Friction Lock
Voltage - Rated DC 250V
Contact Finish - Mating Tin
Contact Type Male Pin
Pitch 3.9624mm
Orientation Right Angle
Depth 22.2mm
Insulation Height 0.402 10.20mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 7A
Pitch - Mating 0.156 3.96mm
Contact Length - Post 0.142 3.60mm
Shrouding Shrouded - 1 Wall
Lead Pitch 3.96mm
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.535 13.59mm
Housing Color Natural
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Number of Circuits 4
Max Voltage Rating (AC) 250V
Dimensions
Length 15.08mm
Compliance
Material Flammability Rating UL94 V-2
RoHS Status ROHS3 Compliant
