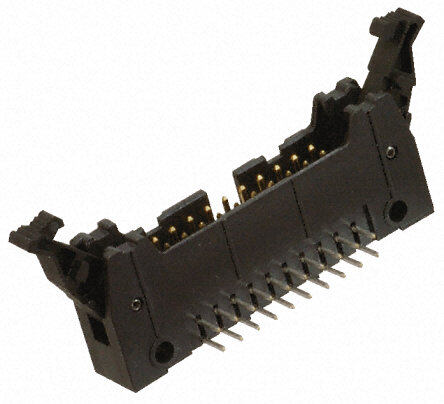

PS-10PE-D4LT2-M1E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
PS series MIL type,pin header,2 rows, 10 pos.,soldering,right angle
PDF
/
Inventory: 4677
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 10
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Packaging Bulk
Published 2011
Series PS
Feature Keying Slot, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Color Black
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
Contact Type Male Pin
Pitch 2.54mm
Insulation Height 0.327 8.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.236 6.00mm
Dimensions
Contact Finish Thickness - Mating 3.90μin 0.099μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
