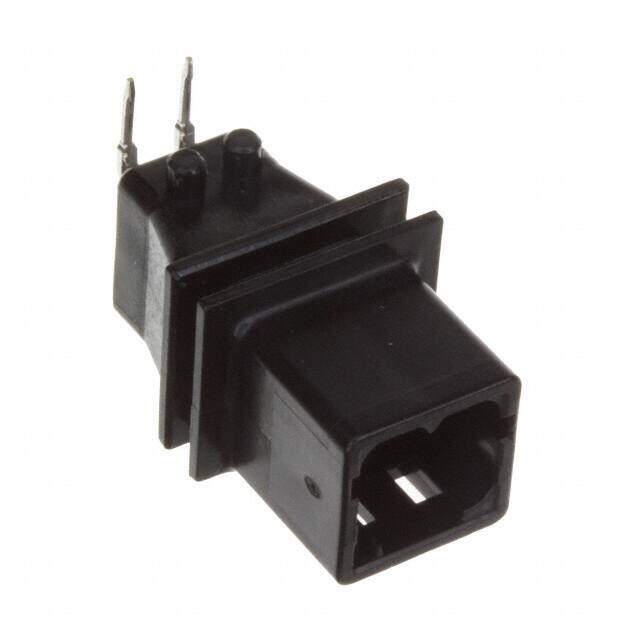

MX44002NF1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER PIN R/A 2POS SLD TIN
PDF
/
Buying Options
Total Price: USD $4.8
Unit Price: USD $4.796
≥1 USD $4.796
≥10 USD $4.35776
≥100 USD $3.83966
≥500 USD $3.263682
≥1000 USD $2.783722
Inventory: 2562
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 8.2mm
Height 11.8mm
Technical
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.122 3.10mm
Insulation Color Black
Pitch - Mating 0.138 3.50mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.465 11.80mm
Depth 23.3mm
Ingress Protection Waterproof
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Gender Male
Number of Rows 1
Applications Automotive
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series MX44
Published 2008
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Board Edge, Through Hole, Right Angle
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 14 Weeks
