MX34007NF1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

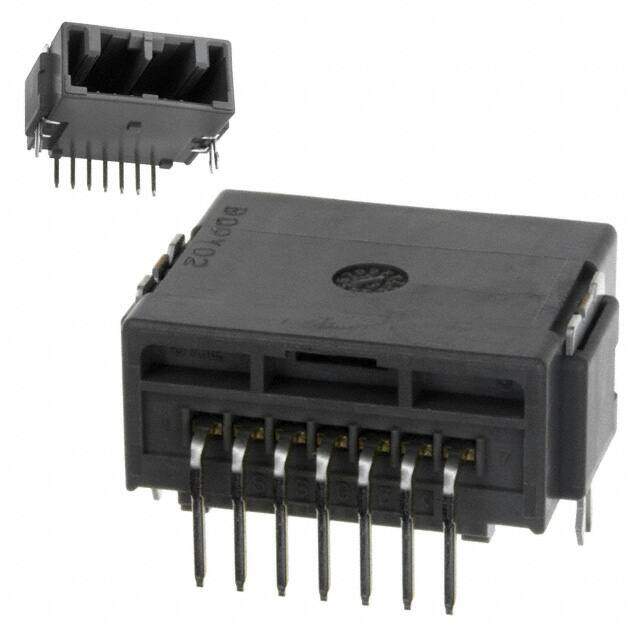

JAE MX34, 7 Way, 1 Row, Right Angle PCB Header
PDF
/
Buying Options
Total Price: USD $2.04
Unit Price: USD $2.0416
≥1 USD $2.0416
≥10 USD $1.7754
≥100 USD $1.586464
≥500 USD $1.322094
≥1000 USD $1.13322
≥3000 USD $1.004784
Inventory: 1091
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Published 2005
Series MX34
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 7
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Grey
Applications Automotive
Number of Rows 1
Gender Male
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.2098mm
Orientation Right Angle
Insulation Height 0.421 10.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.087 2.20mm
Insulation Color Gray
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Number of Contacts 7
Contact Finish - Post Tin
Contact Length - Mating 0.303 7.70mm
Contact Resistance 5mOhm
Insulation Resistance 100MOhm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
