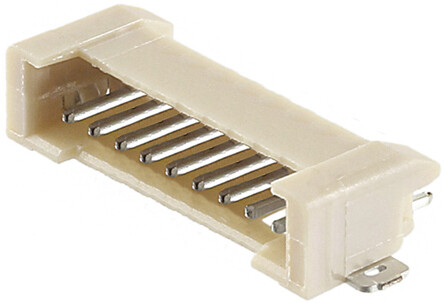

IL-Z-9PL-SMTYE

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 9P Pin Header 1.25mm R/A SMT
PDF
/
Inventory: 9871
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyphenylene Sulfide (PPS)

Technical

Operating Temperature -40°C~70°C
Packaging Tray
Published 2004
Series IL-Z
Feature Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Color Beige, Brown
Number of Rows 1
Voltage - Rated 200V
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 1A per Contact
Pitch 1.25mm
Orientation Right Angle
Insulation Height 0.136 3.46mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.049 1.25mm
Insulation Color Beige
Shrouding Shrouded - 4 Wall
Number of Contacts 9
Contact Finish - Post Tin
Contact Length - Mating 0.108 2.75mm
Contact Gender Male
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 30 AWG

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
