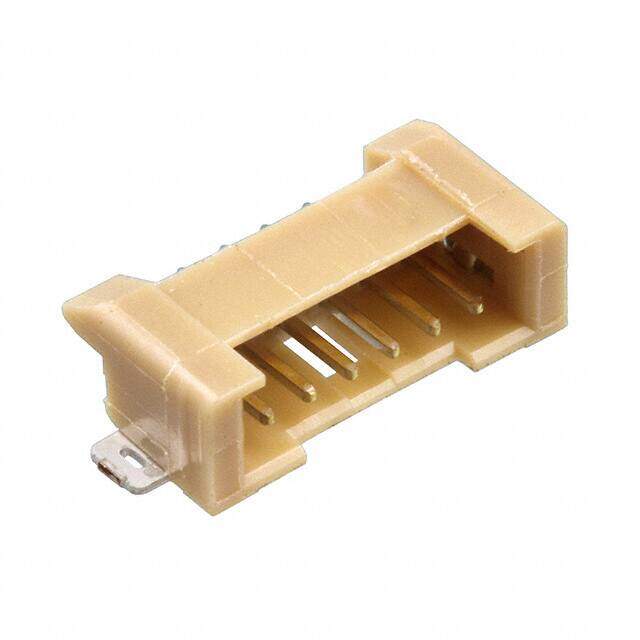

IL-Z-6PL-SMTYE
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 6P Pin Header 1.25mm R/A SMT
PDF
/
Inventory: 4281
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyphenylene Sulfide (PPS)
Housing Material Nylon
Technical
Operating Temperature -40°C~70°C
Packaging Tray
Published 2003
Series IL-Z
Feature Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Color Beige, Brown
Number of Rows 1
Fastening Type Push-Pull
Voltage - Rated DC 500V
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 1A per Contact
Orientation Right Angle
Insulation Height 0.136 3.46mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.049 1.25mm
Insulation Color Beige
Voltage - Rated AC 500V
Shrouding Shrouded - 4 Wall
Lead Pitch 1.25mm
Contact Length - Mating 0.108 2.75mm
Contact Gender Male
Working Voltage 500V
Contact Resistance 20mOhm
Insulation Resistance 100MOhm
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 30 AWG
Wire/Cable Gauge 28 AWG
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
