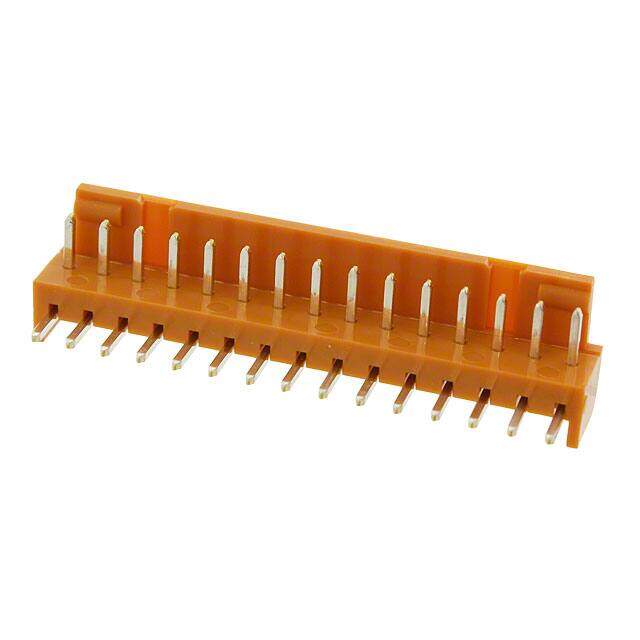

IL-G-15P-S3L2-SA
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2.5MM SOCKET HOUSING
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.900798
≥1 USD $0.900798
≥10 USD $0.849804
≥100 USD $0.801706
≥500 USD $0.756327
≥1000 USD $0.71351
Inventory: 8622
Minimum: 1
-
+
Technical Details
Physical
Contact Material Brass
Contact Plating Lead, Nickel, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2008
Series IL-G
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 15
Number of Rows 1
Gender Female
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A per Contact
Orientation Right Angle
Insulation Height 0.236 6.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.098 2.50mm
Insulation Color Brown
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 1 Wall
Lead Pitch 2.5mm
Contact Length - Mating 0.157 4.00mm
Insulation Resistance 100MOhm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
