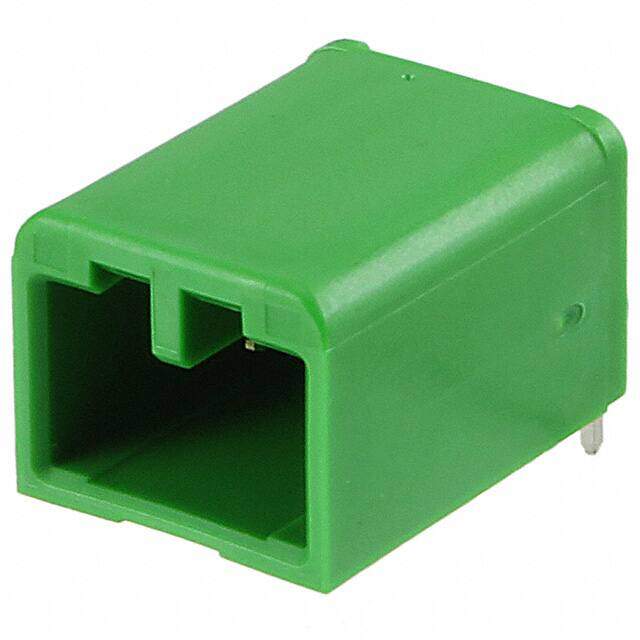

IL-AG5-4P-S3L2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN PIN HEADER 2.5MM 4POS R/A
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.000707
≥1 USD $1.000707
≥10 USD $0.944062
≥100 USD $0.890629
≥500 USD $0.840223
≥1000 USD $0.792653
Inventory: 8757
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2004
Series IL-AG5
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Applications Automotive
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A per Contact
Orientation Right Angle
Insulation Height 0.433 11.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.098 2.50mm
Insulation Color Green
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.331 8.40mm
Compliance
RoHS Status RoHS Compliant
