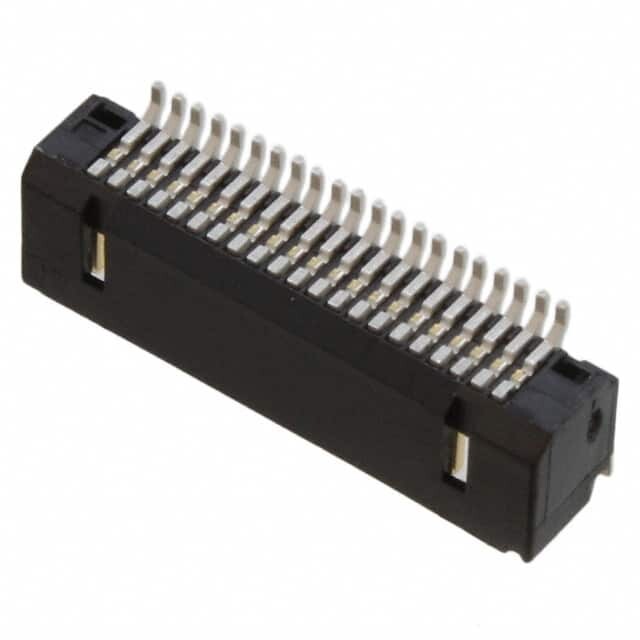

FI-W21P-HFE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 21POS 1.25MM
PDF
/
Buying Options
Total Price: USD $4.87
Unit Price: USD $4.8664
≥1 USD $4.8664
≥10 USD $4.41848
≥100 USD $3.8929
≥500 USD $3.309002
≥1000 USD $2.822389
Inventory: 136
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Contact Location Bottom
Contact Length - Mating 0.094 2.40mm
Contact Finish - Post Tin or Tin-Alloy
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.055 (1.40mm)
Insulation Color Black
Pitch - Mating 0.049 1.25mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.146 3.70mm
Current Rating (Amps) 1A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Friction Lock
Voltage - Rated 200V
Gender Female
Number of Rows 2
Number of Positions 21
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series FI
Published 2004
Packaging Tray
Operating Temperature -40°C~80°C
Physical
Housing Material Thermoplastic
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
