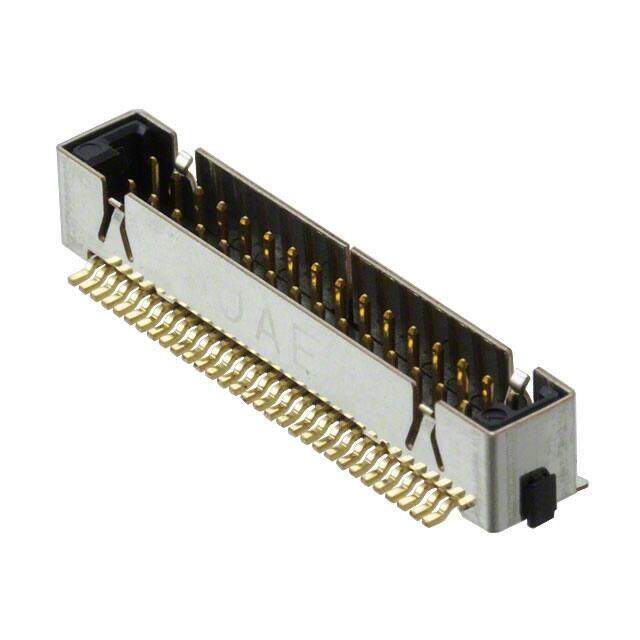

FI-TWE31PB-VF image
Favorite
FI-TWE31PB-VF image
Favorite

FI-TWE31PB-VF

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN RCPT 1.25MM 31POS SMD GOLD
PDF
/
Inventory: 7352
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled

Technical

Operating Temperature -40°C~80°C
Packaging Tray
Published 2000
Series FI
Feature Board Guide, Solder Retention
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 31
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 200V
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A per Contact
Pitch 1.2446mm
Orientation Straight
Insulation Height 0.157 4.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.049 1.25mm
Insulation Color Black
Row Spacing - Mating 0.055 (1.40mm)
Shrouding Shrouded - 4 Wall
Lead Pitch 1.25mm
Number of Contacts 31
Contact Length - Mating 0.094 2.40mm
Insulation Resistance 100MOhm

Dimensions

Stack Height (Mating) 6.95mm 8.15mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
