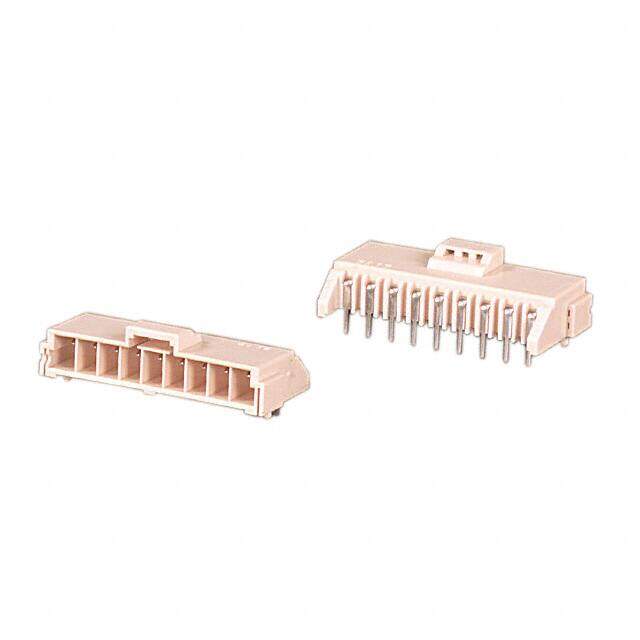

DF7-9P-3.96DS
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 9POS 3.96MM RT ANG T
PDF
/
Inventory: 4641
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Plastic
Technical
Operating Temperature -35°C~85°C
Packaging Bulk
Series DF7
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 9
Number of Rows 1
Gender Male
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.303 7.70mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.156 3.96mm
Number of Conductors ONE
Reference Standard UL,CSA,TUV
Reliability COMMERCIAL
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.276 7.00mm
PCB Contact Pattern RECTANGULAR
Housing Color Beige
Polarization Key POLARIZED HOUSING
Durability 30 Cycles
Withdrawl Force-Min .3058 N
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
