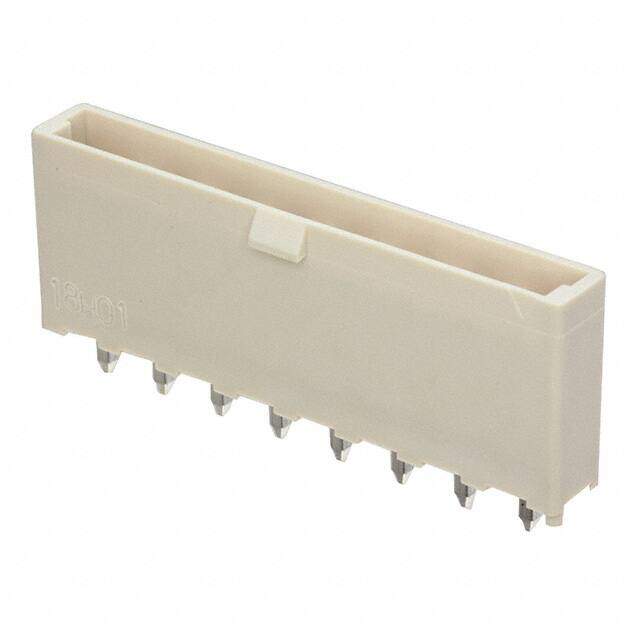

DF5A-8P-5DSA(35)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 5MM
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.58784
≥100 USD $0.527912
≥500 USD $0.431957
≥1000 USD $0.383962
Inventory: 1072
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Technical
Operating Temperature -35°C~85°C
Packaging Bulk
Series DF5
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Number of Rows 1
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Insulation Height 0.591 15.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.197 5.00mm
Insulation Color Beige
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 8A
Contact Resistance 30mOhm
Polarization Key POLARIZED HOUSING
Durability 30 Cycles
Dimensions
Contact Finish Thickness - Mating 39.4μin 1.00μm
Stack Height (Mating) 22.5mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
