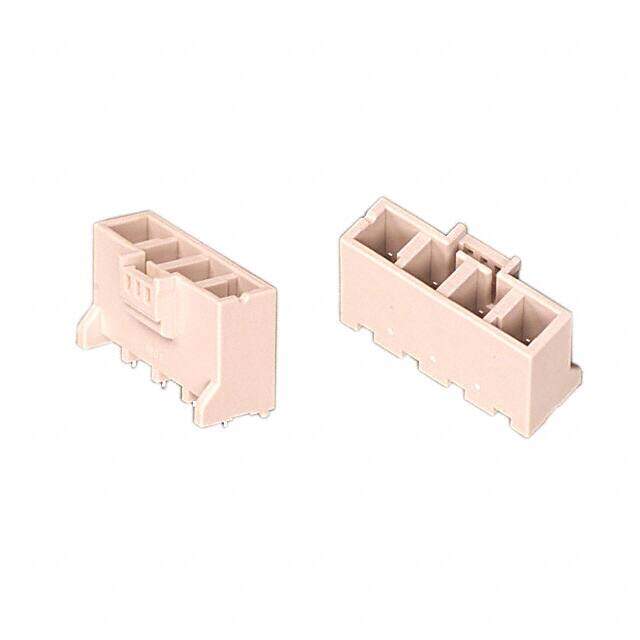

DF22-4P-7.92DSA
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 4POS 7.92MM PCB TIN
PDF
/
Inventory: 8655
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Plastic
Technical
Operating Temperature -35°C~85°C
Packaging Bulk
Series EnerBee? DF22
Feature Board Guide
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Number of Rows 1
Gender Male
Voltage - Rated 1000V
Additional Feature GUIDE KEY INSIDE
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 22A
Terminal Pitch 7.92mm
Insulation Height 0.713 18.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.312 7.92mm
Number of Conductors ONE
Reference Standard UL,CSA,TUV
Reliability COMMERCIAL
Contact Length - Post 0.146 3.70mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Length - Mating 0.354 9.00mm
PCB Contact Pattern RECTANGULAR
Housing Color Beige
Polarization Key POLARIZED KEY
Dielectric Withstanding Voltage 2500VAC V
Durability 30 Cycles
Withdrawl Force-Min .278 N
Dimensions
Stack Height (Mating) 25.7mm 28.7mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
