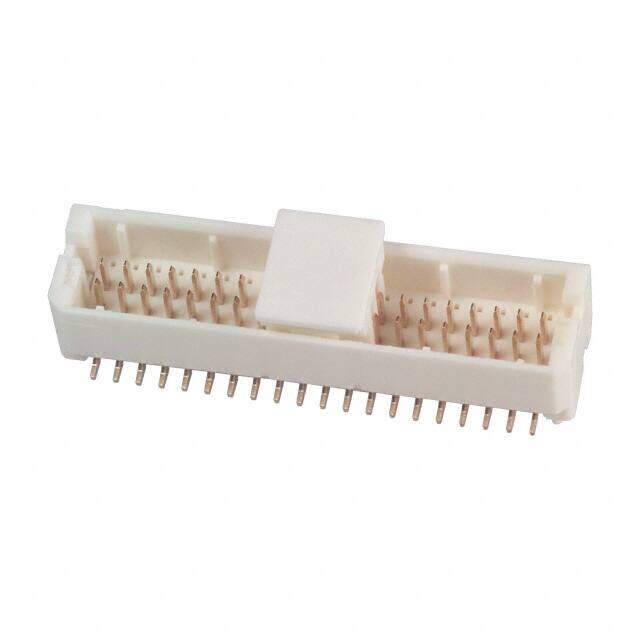

DF20F-40DP-1V(56)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 40POS DUAL SMD GOLD
PDF
/
Inventory: 7320
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Plastic
Technical
Operating Temperature -35°C~85°C
Packaging Tape & Reel (TR)
Published 2002
Series DF20
JESD-609 Code e4
Feature Pick and Place, Solder Retention
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 40
Color Beige
Number of Rows 2
Voltage - Rated 100V
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 40
Insulation Height 0.181 4.60mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.039 1.00mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.039 (1.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 1mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
UL Flammability Code 94V-0
Contact Resistance 30mOhm
Insulation Resistance 500000000Ohm
Mating Contact Pitch 0.039 inch
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 300VAC V
PCB Contact Row Spacing 5.588 mm
Durability 50 Cycles
Dimensions
Contact Finish Thickness - Mating 8.00μin 0.203μm
Contact Finish Thickness - Post Flash
Stack Height (Mating) 5.8mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
