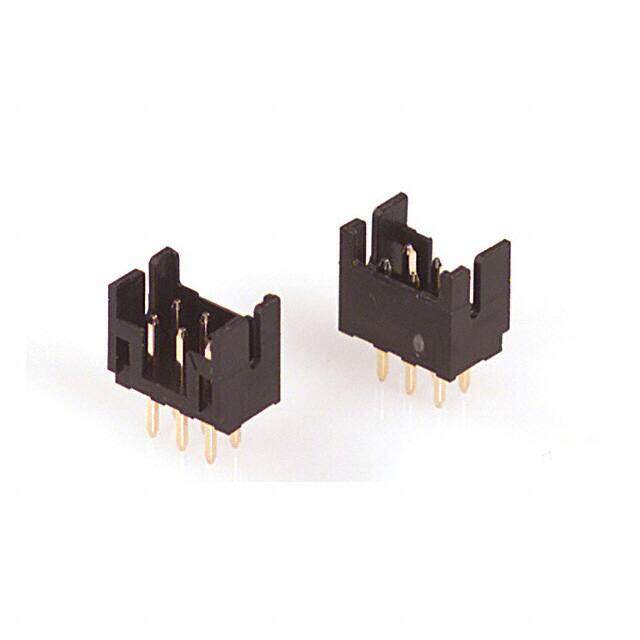

DF11-6DP-2DSA(01)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 6POS 2MM
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.63184
≥100 USD $0.567072
≥500 USD $0.463954
≥1000 USD $0.412403
≥3000 USD $0.360853
Inventory: 10143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Polyamide
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2010
Series DF11
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Gender Male
Voltage - Rated 250V
Additional Feature 100 PCS. PER BAG PACKAGING
Fastening Type Detent Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 5mm
Insulation Height 0.260 6.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Length - Mating 0.118 3.00mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.197 inch
UL Flammability Code 94V-0
Housing Color Black
Rated Current (Signal) 2A
Overall Contact Length 0.299 7.60mm
Contact Resistance 30mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.079 inch
Max Current Rating 2A
Polarization Key GUIDE SLOT(S)
Durability 50 Cycles
Withdrawl Force-Min .3058 N
Dimensions
Height 6.6mm
Length 8mm
Width 5mm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Stack Height (Mating) 7.55 7.8mm 8.9mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
