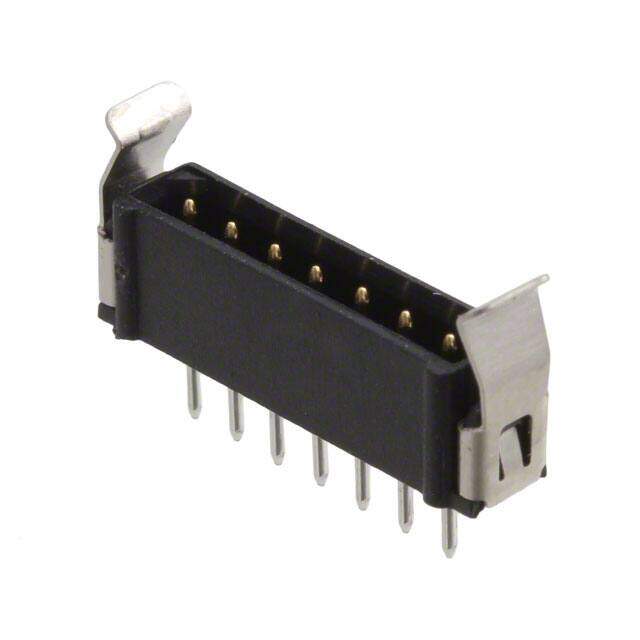

M80-8810742

Harwin Inc.
RoHS
RoHS RoHS compliant
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description 7 Sil Male Vert Conn F/latch
PDF
/
Inventory: 946
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Circular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled

Technical

Operating Temperature -55°C~125°C
Packaging Tube
Published 2012
Series Datamate L-Tek
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 7
Number of Rows 1
Voltage - Rated 800V
Additional Feature LATCHED
Fastening Type Friction Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Terminal Pitch 2mm
Insulation Height 0.219 5.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Contact Resistance 25mOhm
Durability 500 Cycles

Dimensions

Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Stack Height (Mating) 7.23mm 10.2mm 13.46mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Alternative Model

75481-050

75481-050

Amphenol ICC (FCI)
